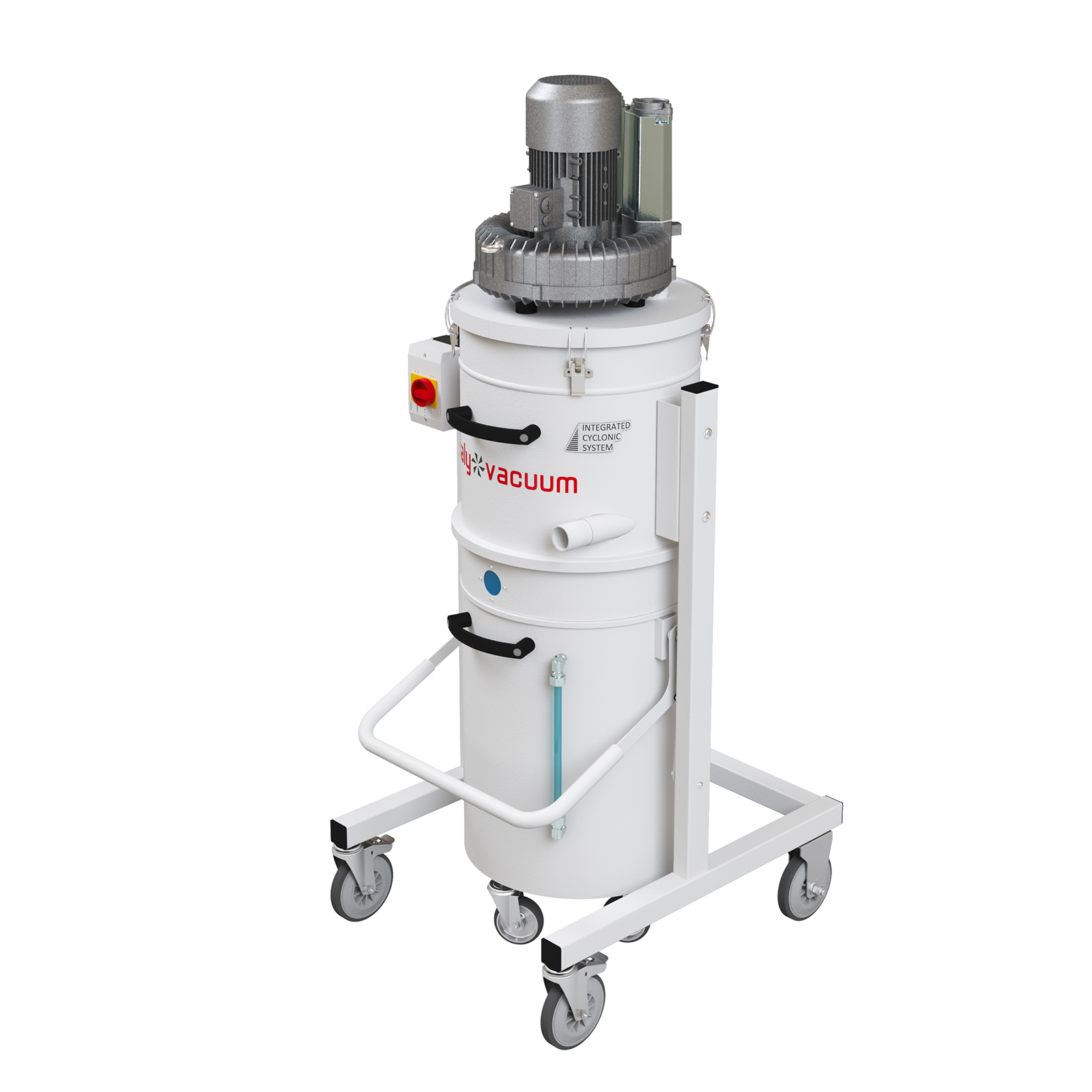

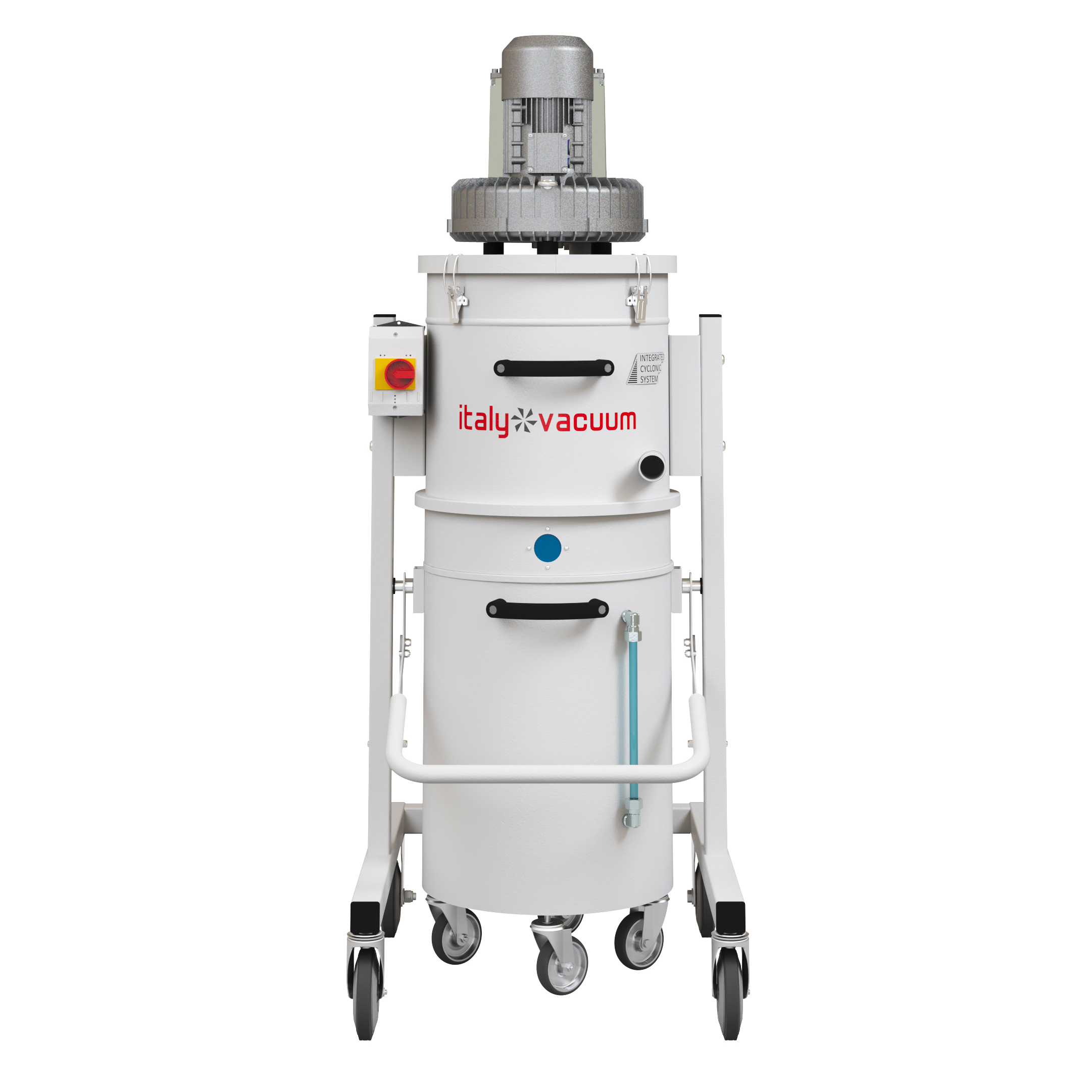

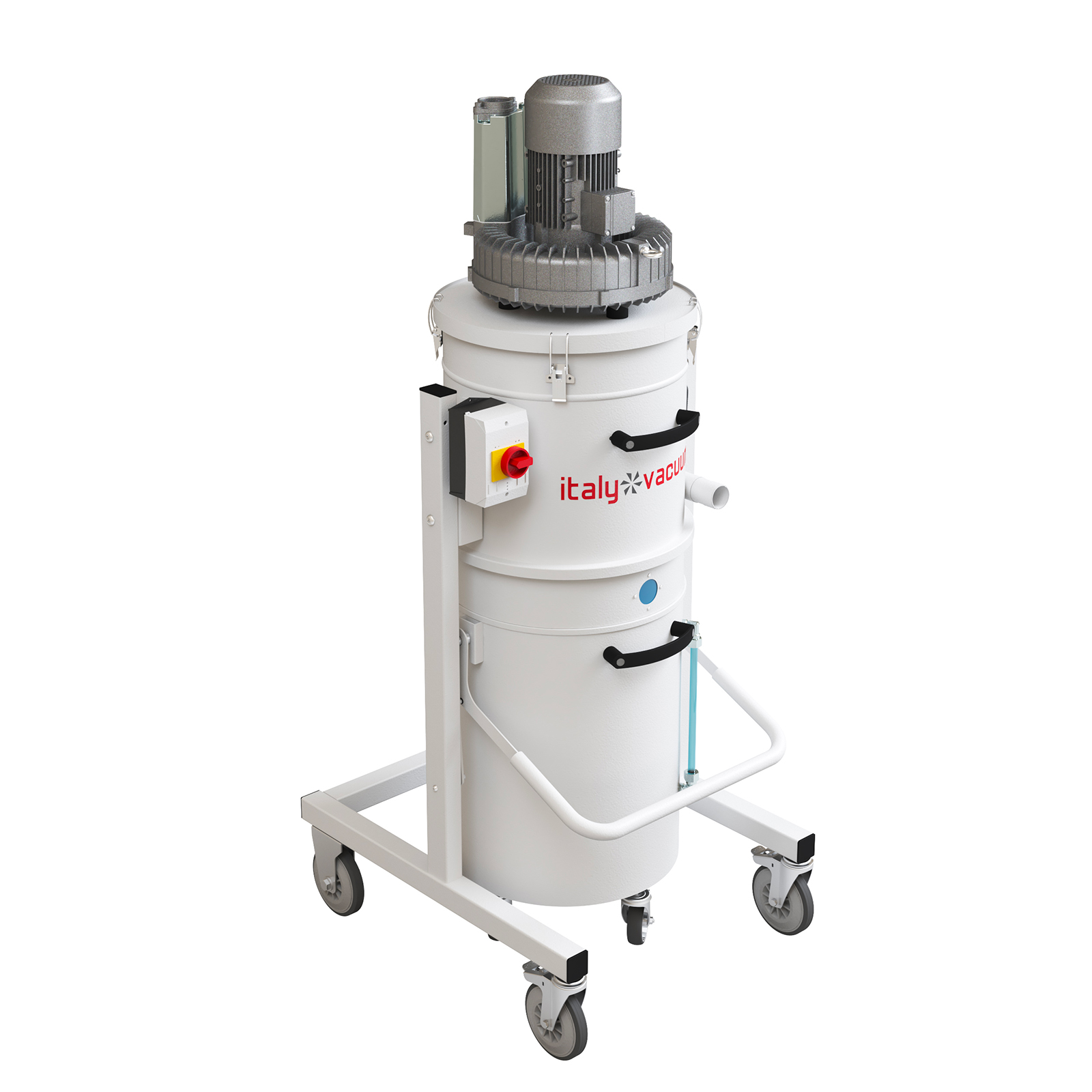

INTER OIL is an intermediate model in terms of size from the oil mist division dedicated to the collection of oil and chips. It represents the link between the smaller models and the larger ones, and among its many strengths, it boasts a capacity of 110 liters (29 gal), which normally is integrated only in to the larger models.

GENERAL INFORMATION OF THE INTER OIL VACUUM
Motorisation available: from 2.2 kW to 12.5 kW ( 3 hp to 17.5 hp )
N° inlet [ Ø ]: N° 1 [ 100mm – 4” ]
Container capacity: 110 liters ( 29 gal )

Available in ATEX version
Certifications available: C.E. / UL-CSA / CURUS
* available in all voltages and frequencies worldwide

Technological and highly effective integrated cyclonic system as standard on each model to lengthen the life of the filter and eliminate maintenance costs
Increase of the distance between the suction inlet and the filters owing to its height so that neither the oil nor its mists can, in any way, clog them and create a reduction in the suction force
Distribution of air flows inside the extractor is calculated and optimized with the aid of a powerful dedicated software
Very sturdy thick collection containers reinforced by perimeter folds with scratchproof powder coating
Container locking system obtained directly on the tubulars of the frame by high precision laser cutting for simpler and more intuitive insertion of the container
Innovative and ergonomic handle for releasing the collection container for convenient extraction at eye level
Possibility of equipping the vacuum cleaner with a series of accessories designed for the specific application of the user
Pneumatic and electronic interface with single or multiple machine tools through remote control systems (on/off – gate valves)
Available in every voltage and frequency worldwide

100% steel frame and top closure structure
Non-marking pivoting wheels with integrated brake
Large ergonomic handle for trolley handling
Powerful double side channel turbine in the upper part of the structure equipped with anti-vibration rubber pads
Class M air filter with special high density anti-grip polyester fabric – IFA certified – antistatic – oil repellent – water repellent
Large porthole in the upper part for visual control of the filling level of the container
Second vertical liquid level indicator inside the container with transparent tube
Robust and well-designed electric rotary switch with clear visibility of its status even in the distance
10 meters of electric cable with connection plug

Contactless antistatic system for grounding residual currents
Remote start on/off – allows the aspirator and the machinery to be switched on and off simultaneously and automatically
Easy lift – container hooking system thanks to which it is possible to empty it without any physical effort by the operator, and is in total compliance with the industry regulations

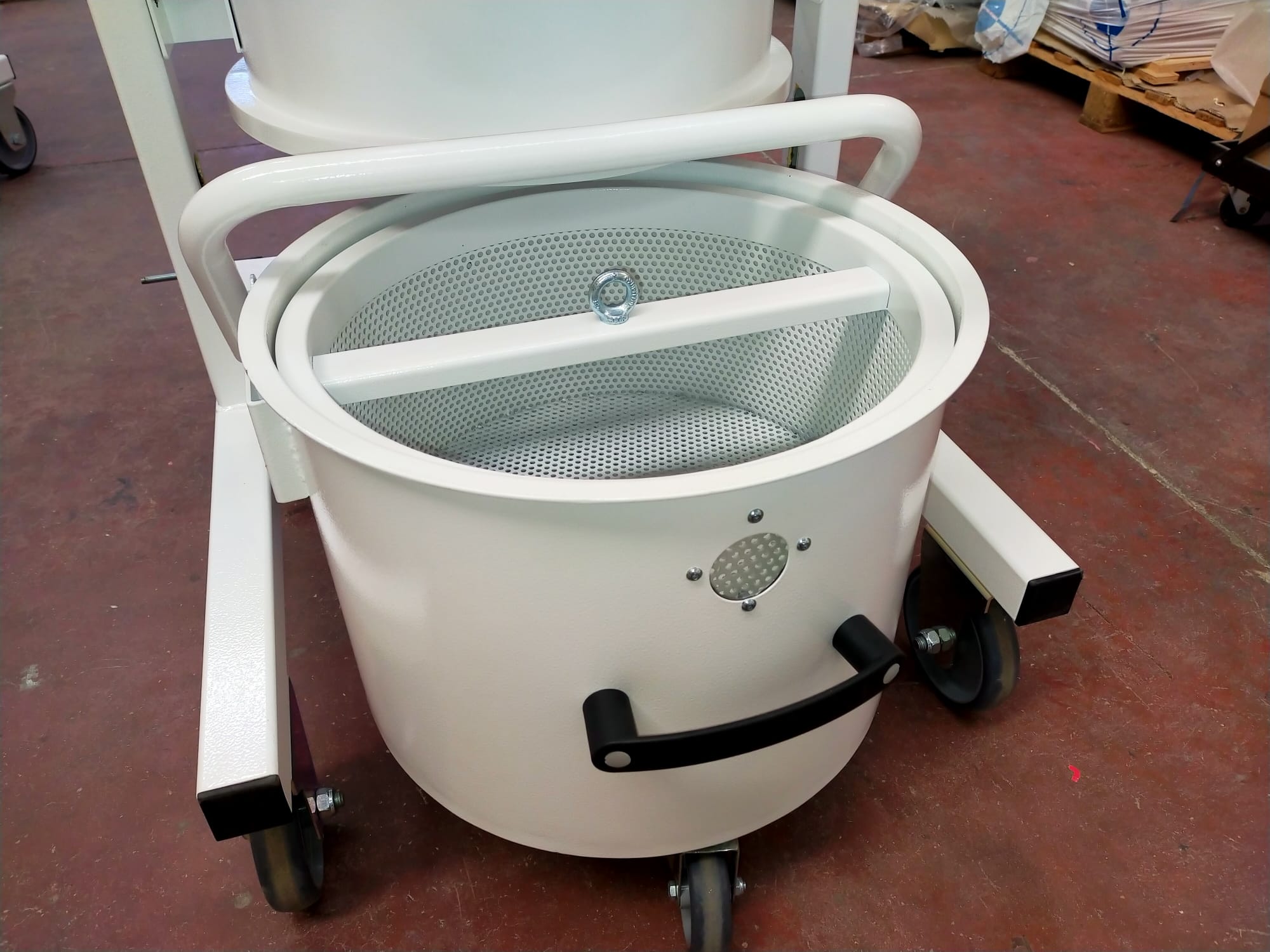

Liquid and chip separator – a special mesh container allows the separation of the reusable liquid from the collected material
Manual and automatic gate valves for diverting and distributing the air flows
Connectors and reducers of different diameters that can be combined with each other without any limits
Spiral tubes smooth inside for greater flow of the material
Cleaning accessories – Specially designed and developed for each type and particle size of material to be suctioned, particularly useful at the end of the day to clean the floor or the car
Oil drain valve – The containers can be equipped with a discharge valve
Reverse Flow – Primarily aimed at optimizing times and costs due to emptying and filling the tanks full of lubricating oil, it indeed allows both operations to be performed with a single extractor by reversing the flow direction through a specific lever
Telescopic Support – Specially designed to support extraction pipes for CNC machines, it allows the pipe to descend from the top, avoiding any kind of obstruction for the operator.
Electroreverse – Economical and effective system for expelling liquid inside the container.

Extraction Hood – Our solutions are ideal for the effective capture of chips, dust, fumes, vapors, and various types of airborne emissions

Special fabric filter for metallic dust – designed to retain metallic dust and chips, even of very small size

Float switch – accurately and reliably monitor the liquid level inside the vacuum unit.

Air-Guard – continuous monitoring device capable of detecting in real time the level of contamination and the performance of the entire vacuum filtration system.
